PTFA181001E - Thermally-Enhanced High Power RF LDMOS FET

Infineon Technologies

📥 Download Datasheet

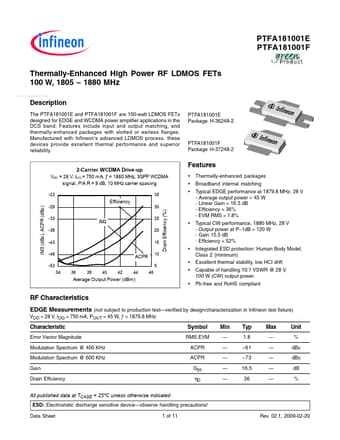

PTFA181001E Datasheet Preview — Preview of PTFA181001E PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: PTFA181001E
Manufacturer: Infineon ↗ Technologies
File Size: 418.90 KB
Datasheet: PTFA181001E_InfineonTechnologies.pdf
Description: Thermally-Enhanced High Power RF LDMOS FET

PTFA181001E Product details

Description

The PTFA181001E and PTFA181001F are 100-watt LDMOS FETs designed for EDGE and WCDMA power amplifier applications in the DCS band.

Features

include input and output matching, and thermally-enhanced packages with slotted or earless flanges. Manufactured with Infineon's advanced LDMOS process, these devices provide excellent thermal performance and superior reliability. PTFA181001E Package H-36248-2 PTFA181001F Package H-37248-2 2-Carrier WCDMA Drive-up VDD = 28 V, IDQ = 750 mA, ƒ = 1880 MHz, 3GPP WCDMA signal, P/A R = 8 dB, 10 MHz carrier spacing -23 35 Features.
Thermally-enhanced packages Broadband i.
