PTFA181001HL - Thermally-Enhanced High Power RF LDMOS FET

This page provides the datasheet information for the PTFA181001HL, a member of the PTFA181001GL Thermally-Enhanced High Power RF LDMOS FET family.

Description

The PTFA181001GL and PTFA181001GL are 100-watt LDMOS FETs designed for EDGE and WCDMA power amplifier applications in the 1805 to 1880 MHz band.

Features

  • include input and output matching, and thermally-enhanced open-cavity packages with copper flanges. Manufactured with Infineon's advanced LDMOS process, these devices provide excellent thermal performance and superior reliability. PTFA181001GL.
  • Package PG-63248-2 PTFA181001HL.
  • Package PG-64248-2 Two-carrier WCDMA Drive-up VDD = 28 V, IDQ = 750 mA, ƒ = 1880 MHz, 3GPP WCDMA signal, PAR = 8 dB, 10 MHz carrier spacing -30 35 Features.
  • Thermally-enhanced, plastic open-cavity (EPOC™.

📥 Download Datasheet

Datasheet preview – PTFA181001HL

Datasheet Details

Part number PTFA181001HL
Manufacturer Infineon
File Size 335.49 KB
Description Thermally-Enhanced High Power RF LDMOS FET
Datasheet download datasheet PTFA181001HL Datasheet
Additional preview pages of the PTFA181001HL datasheet.

📁 Similar Datasheet

  • PTFA - Plug Type Fixed Attenuator (OPLINK)
  • PTFA041501E - Thermally-Enhanced High Power RF LDMOS FETs (Infineon)
  • PTFA041501F - Thermally-Enhanced High Power RF LDMOS FETs (Infineon)
  • PTFA041501GL - Thermally-Enhanced High Power RF LDMOS FETs (Infineon)
  • PTFA041501HL - Thermally-Enhanced High Power RF LDMOS FETs (Infineon)
  • PTFA043002E - Thermally-Enhanced High Power RF LDMOS FETs (Infineon)
  • PTFA070601E - Thermally-Enhanced High Power RF LDMOS FETs (Infineon)
  • PTFA070601F - Thermally-Enhanced High Power RF LDMOS FETs (Infineon)
  • PTFA071701E - Thermally-Enhanced High Power RF LDMOS FETs (Infineon)
  • PTFA071701F - Thermally-Enhanced High Power RF LDMOS FETs (Infineon)
Other Datasheets by Infineon Technologies
  • PTFA181001E - Thermally-Enhanced High Power RF LDMOS FET
  • PTFA181001F - Thermally-Enhanced High Power RF LDMOS FET
  • PTFA181001GL - Thermally-Enhanced High Power RF LDMOS FET
  • PTFA180701E - Thermally-Enhanced High Power RF LDMOS FET
  • PTFA180701F - Thermally-Enhanced High Power RF LDMOS FET
  • PTFA182001E - Thermally-Enhanced High Power RF LDMOS FET
  • PTFA142401EL - Thermally-Enhanced High Power RF LDMOS FET
  • PTFA142401FL - Thermally-Enhanced High Power RF LDMOS FET

Full PDF Text Transcription

Click to expand full text

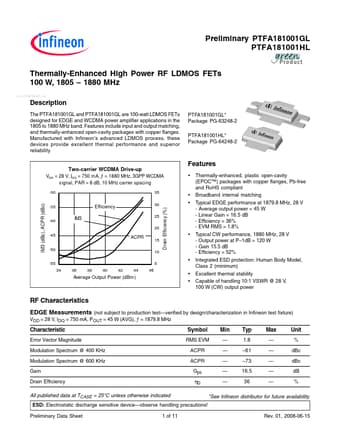

Preliminary PTFA181001GL PTFA181001HL Confidential, Limited Internal Distribution Thermally-Enhanced High Power RF LDMOS FETs 100 W, 1805 – 1880 MHz www.DataSheet4U.net Description The PTFA181001GL and PTFA181001GL are 100-watt LDMOS FETs designed for EDGE and WCDMA power amplifier applications in the 1805 to 1880 MHz band. Features include input and output matching, and thermally-enhanced open-cavity packages with copper flanges. Manufactured with Infineon's advanced LDMOS process, these devices provide excellent thermal performance and superior reliability.
