PTFA041501GL

Thermally-Enhanced High Power RF LDMOS FETs

PTFA041501GL Features

* 45 Thermally-enhanced plastic open-cavity (EPOCâ„¢) packages with copper flanges, Pb-free and RoHS compliant Broadband internal matching Typical CDMA performance at 470 MHz, 28 V - Average output power = 60 W - Linear Gain = 21 dB - Efficiency = 41% Typical CW performance, 470 MHz, 28 V - O

PTFA041501GL General Description

The PTFA041501GL and PTFA041501HL are 150-watt LDMOS FETs designed for ultra-linear CDMA power amplifier applications. They are available in thermally-enhanced plastic open-cavity packages with copper flanges. Manufactured with Infineon's advanced LDMOS process, these devices provide excellent therm.

PTFA041501GL Datasheet (445.02 KB)

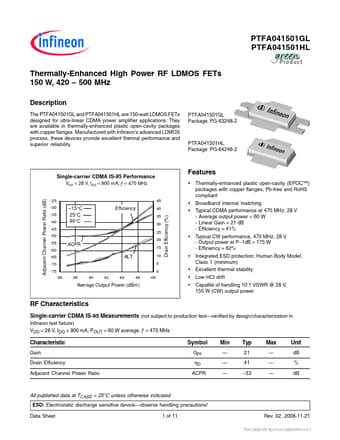

Preview of PTFA041501GL PDF

Datasheet Details

Part number:

PTFA041501GL

Manufacturer:

Infineon ↗

File Size:

445.02 KB

Description:

Thermally-enhanced high power rf ldmos fets.
PTFA041501GL PTFA041501HL Confidential, Limited Internal Distribution Thermally-Enhanced High Power RF LDMOS FETs 150 W, 420

* 500 MHz Descri.
