IC61SF12832 - (IC61SF12832 / IC61SF12836) 128K x 32 Flow Through SyncBurst SRAM

Datasheet Summary

Description

synchronous static RAM designed to provide a burstable, highperformance for high speed networking and communication applications.

It is organized as 131,072 words by 32 bits or 36 bits, fabricated with ICSI's advanced CMOS technology.

Features

  • Fast access times: 7.5 ns, 8 ns, 8.5 ns, 10 ns, and 12 ns.
  • Internal self-timed write cycle.
  • Individual Byte Write Control and Global Write.
  • Clock controlled, registered address, data inputs and control signals.
  • PentiumTM or linear burst sequence control using MODE input.
  • Three chip enables for simple depth expansion and address pipelining.
  • Common data inputs and data outputs.
  • 100-Pin TQFP (JEDEC LQFP) and 119-pin PBGA packa.

📥 Download Datasheet

Datasheet preview – IC61SF12832

Datasheet Details

Part number IC61SF12832
Manufacturer Integrated Circuit Solution
File Size 201.58 KB
Description (IC61SF12832 / IC61SF12836) 128K x 32 Flow Through SyncBurst SRAM
Datasheet download datasheet IC61SF12832 Datasheet
Additional preview pages of the IC61SF12832 datasheet.

📁 Similar Datasheet

  • IC61C1024 - 128K x 8 HIGH-SPEED CMOS STATIC RAM (ICS)
  • IC61C1024L - 128K x 8 HIGH-SPEED CMOS STATIC RAM (ICS)
  • IC61LV12816 - 128K x 16 Hight Speed SRAM (ICSI)
  • IC61LV256 - 32K x 8 Hight Speed SRAM (ICSI)
  • IC61LV5128 - 512K x 8 Hight Speed SRAM (ICSI)
  • IC61LV6416 - 64K x 16 Hight Speed SRAM (ICSI)
  • IC62C1024 - 128K X 8 HIGH SPEED CMOS STATIC RAM (ICSI)
  • IC62C1024AL - 128K x 8 Low Power CMOS SRAM (ICSI)
  • IC62C1024L - 128K X 8 LOW POWER CMOS STATIC RAM (ICSI)
  • IC62LV1008L - 1 M x 8 bit Low Voltage and Ultra Low Power CMOS Static RAM (ICSI)
Other Datasheets by Integrated Circuit Solution

Full PDF Text Transcription

Click to expand full text

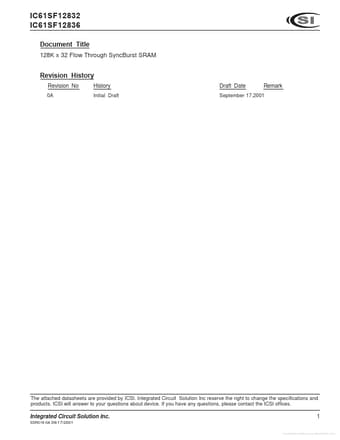

IC61SF12832 IC61SF12836 Document Title 128K x 32 Flow Through SyncBurst SRAM Revision History Revision No 0A History Initial Draft Draft Date Remark September 17,2001 The attached datasheets are provided by ICSI. Integrated Circuit Solution Inc reserve the right to change the specifications and products. ICSI will answer to your questions about device. If you have any questions, please contact the ICSI offices. Integrated Circuit Solution Inc. SSR018-0A 09/17/2001 1 Free Datasheet http://www.datasheet4u.com/ IC61SF12832 IC61SF12836 128K x 32, 128K x 36 SYNCHRONOUS FLOW-THROUGH STATIC RAM FEATURES • Fast access times: 7.5 ns, 8 ns, 8.
