Description

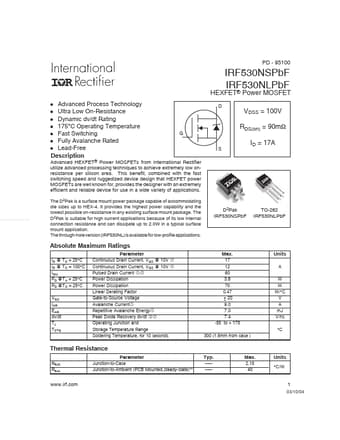

PD - 95100 HEXFET Power MOSFET Advanced Process Technology l Ultra Low On-Resistance l Dynamic dv/dt Rating l 175°C Operating Temperature l Fast Swit.
l
IRF530NSPbF IRF530NLPbF ®
VDSS = 100V RDS(on) = 90mΩ
D
G S
ID = 17A
Advanced HEXFET® Power MOSFETs from International Rectifier utilize advance.
Features
* ns are shown in millimeters (inches)
D2Pak Package Outline
D2Pak Part Marking Information (Lead-Free)
T H IS IS AN IR F 5 3 0 S W IT H L OT COD E 80 2 4 AS S E M B L E D ON W W 0 2, 20 00 IN T H E AS S E M B L Y L IN E "L " N ote: "P " in as s em bly lin e po s itio n in dicates "L ead-F r ee" IN
Applications
* The D2Pak is a surface mount power package capable of accommodating die sizes up to HEX-4. It provides the highest power capability and the lowest possible on-resistance in any existing surface mount package. The D2Pak is suitable for high current applications because of its low internal connection
