Part number:
IRF5305S
Manufacturer:
INCHANGE
File Size:
248.55 KB
Description:
P-channel mosfet
IRF5305S Datasheet (248.55 KB)
| Image | Manufacturer | B2B MPN | Description | Distributor | Stock | Quantity | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|
 |
Infineon Technologies AG | IRF5305STRLPBF | MOSFET P-CH 55V 31A D2PAK | DigiKey | 800 | 5600 units |
$0.6
|
🛒 Buy Now |

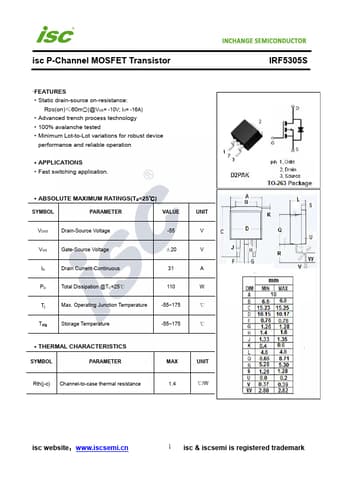

IRF5305S Datasheet (248.55 KB)
IRF5305S
INCHANGE
248.55 KB
P-channel mosfet
* Static drain-source on-resistance: RDS(on)≤60mΩ(@VGS= -10V; ID= -16A)
* Advanced trench process technology
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation
* APPLICATIONS
* Fast switching application.
* ABSOLUTE MAXI
