IRF530NL - N-Channel MOSFET

Features

  • With To-262 package.
  • Low input capacitance and gate charge.
  • Low gate input resistance.
  • 100% avalanche tested.
  • Minimum Lot-to-Lot variations for robust device performance and reliable operation.

📥 Download Datasheet

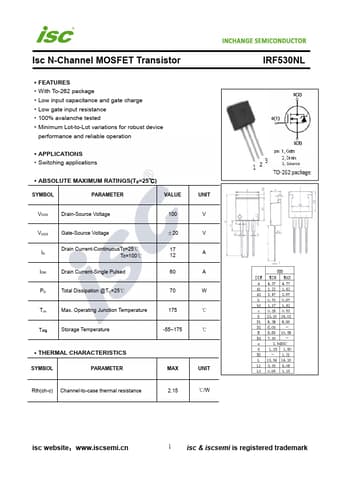

Datasheet preview – IRF530NL

Datasheet Details

Part number IRF530NL
Manufacturer INCHANGE
File Size 251.86 KB
Description N-Channel MOSFET
Datasheet download datasheet IRF530NL Datasheet
Additional preview pages of the IRF530NL datasheet.

📁 Similar Datasheet

  • IRF530NL - HEXFET Power MOSFET (International Rectifier)
  • IRF530NLPBF - HEXFET Power MOSFET (International Rectifier)
  • IRF530N - N-channel TrenchMOS transistor (NXP)
  • IRF530N - N-Channel Power MOSFET (Intersil Corporation)
  • IRF530N - Power MOSFET (International Rectifier)
  • IRF530N - Power MOSFET (Fairchild Semiconductor)
  • IRF530NPbF - HEXFET Power MOSFET (International Rectifier)
  • IRF530NPBF - N-Channel MOSFET (VBsemi)
  • IRF530NS - Power MOSFET (International Rectifier)
  • IRF530NSPBF - HEXFET Power MOSFET (International Rectifier)
Other Datasheets by INCHANGE

Full PDF Text Transcription

Click to expand full text
Isc N-Channel MOSFET Transistor ·FEATURES ·With To-262 package ·Low input capacitance and gate charge ·Low gate input resistance ·100% avalanche tested ·Minimum Lot-to-Lot variations for robust device performance and reliable operation ·APPLICATIONS ·Switching applications ·ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 100 VGSS ID IDM Gate-Source Voltage Drain Current-ContinuousTc=25℃ Tc=100℃ Drain Current-Single Pulsed ±20 17 12 60 PD Total Dissipation @TC=25℃ 70 Tch Max. Operating Junction Temperature 175 Tstg Storage Temperature -55~175 UNIT V V A A W ℃ ℃ ·THERMAL CHARACTERISTICS SYMBOL PARAMETER MAX UNIT Rth(ch-c) Channel-to-case thermal resistance 2.15 ℃/W IRF530NL isc website：www.iscsemi.
