IRF6603 Datasheet - International Rectifier

HEXFETPower MOSFET

IRF6603 Features

* Driver same type as D.U.T. ISD controlled by Duty Factor "D" D.U.T. - Device Under Test VDD VDD + - Re-Applied Voltage Inductor Curent Body Diode Forward Drop Ripple ≤ 5% ISD

* VGS = 5V for Logic Level Devices Fig 15. Peak Diode Recovery dv/dt Test Circuit for N-Channel HEXFET® Power M

IRF6603 General Description

The IRF6603 combines the latest HEXFET® Power MOSFET Silicon technology with the advanced DirectFETTM packaging to achieve the lowest on-state resistance in a package that has the footprint of an SO-8 and only 0.7 mm profile. The DirectFET package is compatible with existing layout geometries used i.

IRF6603 Datasheet (201.71 KB)

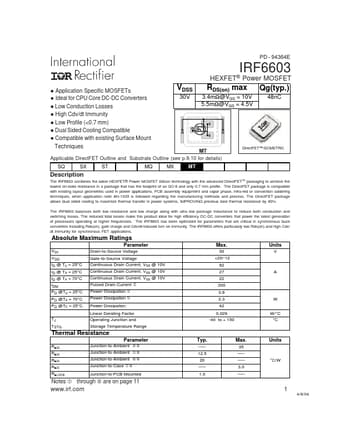

IRF6603 Datasheet Preview — Preview of IRF6603 PDF

Datasheet Details

Part number:

IRF6603

Manufacturer:

International Rectifier

File Size:

201.71 KB

Description:

Hexfetpower mosfet.
PD - 94364E HEXFET® l IRF6603 Power MOSFET Application Specific MOSFETs l Ideal for CPU Core DC-DC Converters l Low Conduction Losses l High Cdv/dt.
