IRF6618PbF Datasheet - International Rectifier

IRF6618PbF - Power MOSFET

The IRF6618PbF combines the latest HEXFET® Power MOSFET Silicon technology with the advanced DirectFETTM packaging to achieve the lowest on-state resistance in a package that has the footprint of a SO-8 and only 0.7 mm profile. The DirectFET package is compatible with existing layout geometries used.
PD - 97240A l RoHs Compliant  l Lead-Free (Qualified up to 260°C Reflow) l Application Specific MOSFETs l Ideal for CPU Core DC-DC Converters l Low Conduction Losses l High Cdv/dt Immunity l Low Profile (<0.7mm) l Dual Sided Cooling Compatible  l Compatible with existing Surface Mount Techniques  IRF6618PbF IRF6618TRPbF DirectFET™ Power MOSFET ‚ VDSS VGS RDS(on) RDS(on) 30V max ±20V max 2.2mΩ@ 10V 3.4mΩ@ 4.5V Qg tot Qgd Qgs2 Qrr Qoss Vgs(th) 43nC 15nC 4.0nC 46nC 28nC 1.64V Appli.

IRF6618PbF-InternationalRectifier.pdf

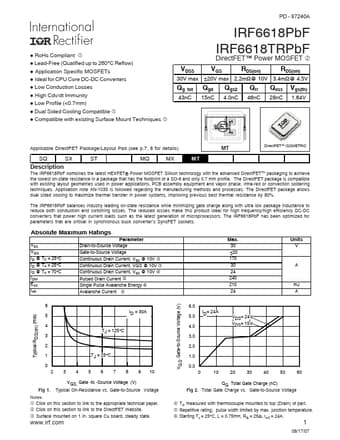

Preview of IRF6618PbF PDF
IRF6618PbF Datasheet Preview Page 2 IRF6618PbF Datasheet Preview Page 3

Datasheet Details

Part number:

IRF6618PbF

Manufacturer:

International Rectifier

File Size:

233.55 KB

Description:

Power mosfet.
