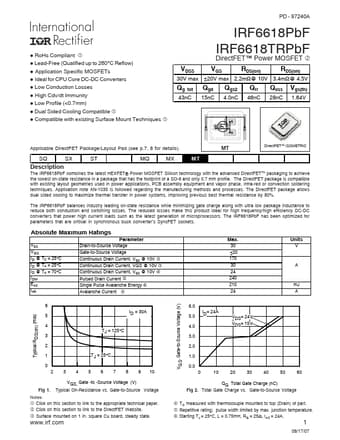

IRF6618TRPbF, IRF6618PbF Datasheet - International Rectifier

IRF6618TRPbF Power MOSFET

The IRF6618PbF combines the latest HEXFET® Power MOSFET Silicon technology with the advanced DirectFETTM packaging to achieve the lowest on-state resistance in a package that has the footprint of a SO-8 and only 0.7 mm profile. The DirectFET package is compatible with existing layout geometries used.

PD - 97240A l RoHs Compliant l Lead-Free (Qualified up to 260°C Reflow) l Application Specific MOSFETs l Ideal for CPU Core DC-DC Converters l Low Conduction Losses l High Cdv/dt Immunity l Low Profile (<0.7mm) l Dual Sided Cooling Compatible l Compatible with existing Surface Mount Techniques IRF6618PbF IRF6618TRPbF DirectFET Power MOSFET VDSS VGS RDS(on) RDS(on) 30V max ±20V max 2.2mΩ@ 10V 3.4mΩ@ 4.5V Qg tot Qgd Qgs2 Qrr Qoss Vgs(th) 43nC 15nC 4.0nC 46nC 28nC 1.64V Appli.
