IRF6611 Datasheet - International Rectifier

IRF6611 DirectFET Power MOSFET

The IRF6611 combines the latest HEXFET® power MOSFET silicon technology with advanced DirectFETTM packaging to achieve the lowest on-state resistance in a package that has the footprint of an SO-8 and only 0.7 mm profile. The DirectFET package is compatible with existing layout geometries used in po.
PD - 96978A IRF6611 DirectFET™ Power MOSFET Low Profile (<0.7 mm) Dual Sided Cooling Compatible Ultra Low Package Inductance Optimized for High Frequency Switching above 1MHz Typical values (unless otherwise specified) VDSS VGS RDS(on) RDS(on) 30V max ±20V max 2.0mΩ@ 10V 2.6mΩ@ 4.5V Qg tot Qgd Qgs2 Qrr Qoss Vgs(th) Ideal for CPU Core DC-DC Converters 37nC 12nC 3.3nC 16nC 23nC 1.7V Optimized for SyncFET Socket of Sync. Buck Converter Low Conduction Losses Compatible with Existing.

IRF6611 Datasheet (245.78 KB)

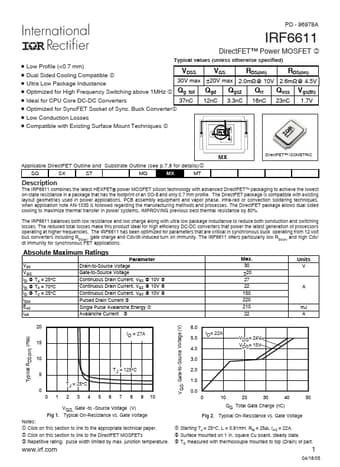

Preview of IRF6611 PDF

Datasheet Details

Part number:

IRF6611

Manufacturer:

International Rectifier

File Size:

245.78 KB

Description:

Directfet power mosfet.
