IRF6610 HEXFET Power MOSFET Silicon Technology

The IRF6610 combines the latest HEXFET® Power MOSFET Silicon technology with the advanced DirectFETTM packaging to achieve the lowest on-state resistance in a package that has the footprint of a MICRO-8 and only 0.7 mm profile. The DirectFET package is compatible with existing layout geometries used.
PD - 97012 www.DataSheet4U.com IRF6610 RDS(on) Qoss 5.9nC DirectFET™ Power MOSFET Typical values (unless otherwise specified) Lead and Bromide Free Low Profile (<0.7 mm) Dual Sided Cooling Compatible Ultra Low Package Inductance Optimized for High Frequency Switching Ideal for CPU Core DC-DC Converters Optimized for both Sync.FET and some Control FET application Low Conduction and Switching Losses Compatible with existing Surface Mount Techniques VDSS Qg tot VGS Qgd 3.6nC RDS(on) Qgs2 1.3n.

IRF6610 Features

* ypical Source-Drain Diode Forward Voltage 70 60 ID, Drain Current (A) Typical VGS(th) Gate threshold Voltage (V) Fig11. Maximum Safe Operating Area 2.5 50 40 30 20 10 0 25 50 75 100 125 150 T C , Case Temperature (°C) 2.0 ID = 250µA 1.5 1.0 -75 -50 -25 0 25 50 75 100 125 150 T J , Temperature (

IRF6610 Datasheet (266.29 KB)

Preview of IRF6610 PDF

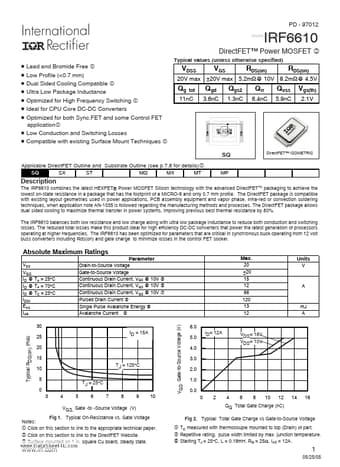

IRF6610 Datasheet Preview Page 2 IRF6610 Datasheet Preview Page 3

Datasheet Details

Part number:

IRF6610

Manufacturer:

International Rectifier

File Size:

266.29 KB

Description:

Hexfet power mosfet silicon technology.
