IRF7805ZPbF Datasheet - International Rectifier

IRF7805ZPbF Power MOSFET

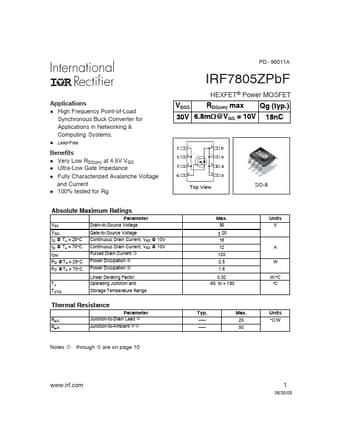

Applications l High Frequency Point-of-Load Synchronous Buck Converter for Applications in Networking & Computing Systems. l Lead-Free Benefits l Very Low RDS(on) at 4.5V VGS l Ultra-Low Gate Impedance l Fully Characterized Avalanche Voltage and Current l 100% tested for Rg PD - 96011A IRF7805ZPbF HEXFET® Power MOSFET VDSS RDS(on) max Qg (typ.) :30V 6.8m @VGS = 10V 18nC S1 S2 S3 G4 AA 8D 7D 6D 5D Top View SO-8 Absolute Maximum Ratings Parameter VDS Drain-to-Source Voltage VGS ID @ T.

IRF7805ZPbF Features

* l gate-source charge that is included in all MOSFET data sheets. The importance of splitting this gate-source charge into two sub elements, Qgs1 and Qgs2, can be seen from Fig 16. Qgs2 indicates the charge that must be supplied by the gate driver between the time that the threshold voltage has been
