IRF7807 Datasheet, Mosfet, International Rectifier

IRF7807 Features

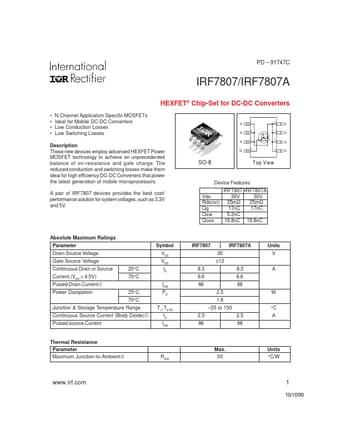

• Mosfet IRF7807 IRF7807A Vds 30V 30V Rds(on) 25mΩ 25mΩ Qg 17nC 17nC Qsw 5.2nC Qoss 16.8nC 16.8nC Absolute Maximum Ratings Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain or

PDF File Details

Part number:

IRF7807

Manufacturer:

International Rectifier

File Size:

239.99kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. These new devices employ advanced HEXFET Power MOSFET technology to achieve an unprecedented balance of on-resistance and gate charge

IRF7807 Application

• Applications This has been demonstrated with the 3.3V and 5V converters. (Fig 3 and Fig 4). In these applications the same MOSFET IRF7807 was used
