IRF7807D1 - MOSFET

Datasheet Summary

Description

The FETKY™ family of Co-Pack HEXFET®MOSFETs and Schottky diodes offers the designer an innovative, board space saving solution for switching regulator and power management applications.

Features

  • (Max Values) IRF7807D1 VDS RDS(on) Qg Qsw Qoss 30V 25mΩ 14nC 5.2nC 18.4nC Junction & Storage Temperature Range Thermal Resistance Parameter Maximum Junction-to-Ambient.
  • RθJA Max. 50 Units °C/W www. irf. com 1 11/8/99 IRF7807D1 Electrical Characteristics Parameter Drain-to-Source Breakdown Voltage.
  • Static Drain-Source on Resistance.
  • Drain-Source Leakage Current.
  • V(BR)DSS RDS(on) 1.0 90 7.2 Min 30 Typ Max Units V Conditions VGS = 0V, ID = 250µA VGS = 4.5V, ID = 7A‚ VDS.

📥 Download Datasheet

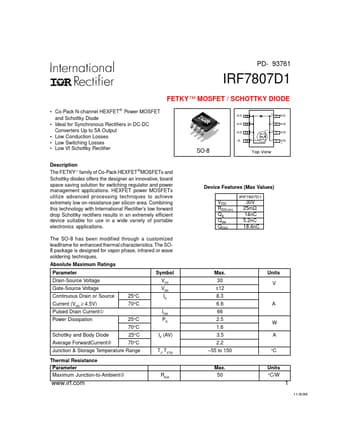

Datasheet preview – IRF7807D1
