IRF7807APbF-1, IRF7807TRPbF-1 Datasheet - International Rectifier

IRF7807APbF-1, IRF7807TRPbF-1, HEXFET Chip-Set for DC-DC Converters

VDS RDS(on) max (@VGS = 4.5V) Qg (typical) ID (@TA = 25°C) IRF7807TRPbF-1 IRF7807ATRPbF-1 HEXFET® Chip-Set for DC-DC Converters 30 V 25 mΩ 12 nC 8..

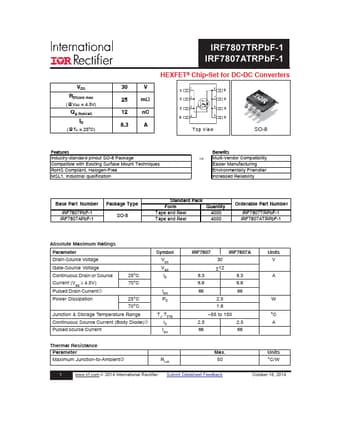

datasheet Preview Page 1 from Datasheet4u.com

IRF7807TRPbF-1-InternationalRectifier.pdf

IRF7807APbF-1 Datasheet Preview — This datasheet PDF includes multiple part numbers: IRF7807APbF-1, IRF7807TRPbF-1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IRF7807APbF-1, IRF7807TRPbF-1

Manufacturer:

International Rectifier

File Size:

266.85 KB

Description:

HEXFET Chip-Set for DC-DC Converters

Note:

This datasheet PDF includes multiple part numbers: IRF7807APbF-1, IRF7807TRPbF-1.
Please refer to the document for exact specifications by model.

Features

* Industry-standard pinout SO-8 Package Compatible with Existing Surface Mount Techniques RoHS Compliant, Halogen-Free MSL1, Industrial qualification Benefits ⇒ Multi-Vendor Compatibility Easier Manufacturing Environmentally Friendlier Increased Reliability Base Part Number IRF7807PbF-1 IRF7807APbF-

Applications

* This has been demonstrated with the 3.3V and 5V converters. (Fig 3 and Fig 4). In these applications the same MOSFET IRF7807 was used for both the control FET (Q1) and the synchronous FET (Q2). This provides a highly effective cost/performance solution. Efficiency (%) Efficiency (%) 3.3V Supply :
