IRFB3207PBF Datasheet - International Rectifier

IRFB3207PBF Power MOSFET

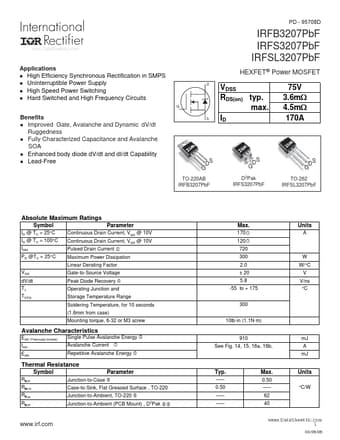

PD - 95708D www.DataSheet4U.com IRFB3207PbF IRFS3207PbF IRFSL3207PbF HEXFET® Power MOSFET D Applications l High Efficiency Synchronous Rectification in SMPS l Uninterruptible Power Supply l High Speed Power Switching l Hard Switched and High Frequency Circuits G Benefits l Improved Gate, Avalanche and Dynamic dV/dt Ruggedness l Fully Characterized Capacitance and Avalanche SOA l Enhanced body diode dV/dt and dI/dt Capability l Lead-Free S VDSS RDS(on) typ. max. ID 75V 3.6m: 4.5m: 170A S .

IRFB3207PBF Features

* very part type. 2. Safe operation in Avalanche is allowed as long as neither Tjmax nor Iav (max) is exceeded. 3. Equation below based on circuit and waveforms shown in Figures 16a, 16b. 4. PD (ave) = Average power dissipation per single avalanche pulse. 5. BV = Rated breakdown voltage (1.3 factor ac
