IRFIZ34NPBF Datasheet - International Rectifier

IRFIZ34NPBF, Power MOSFET

l Advanced Process Technology l Isolated Package l High Voltage Isolation = 2.5KVRMS l Sink to Lead Creepage Dist.= 4.8mm l Fully Avalanche Rated l.
Fifth Generation HEXFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area.

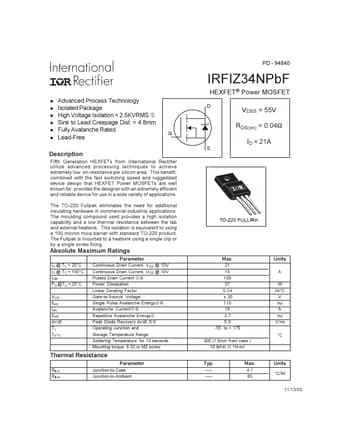

datasheet Preview Page 1 from Datasheet4u.com

IRFIZ34NPBF-InternationalRectifier.pdf

IRFIZ34NPBF Datasheet Preview — Preview of IRFIZ34NPBF PDF

Datasheet Details

Part number:

IRFIZ34NPBF

Manufacturer:

International Rectifier

File Size:

262.94 KB

Description:

Power MOSFET

Applications

* The TO-220 Fullpak eliminates the need for additional insulating hardware in commercial-industrial applications. The moulding compound used provides a high isolation capability and a low thermal resistance between the tab and external heatsink. This isolation is equivalent to using a 100 micron mi
