IRG4BC10KDPBF - HEXFET Power MOSFET

Product Overview

International Rectifier

📥 Download Datasheet

IRG4BC10KDPBF HEXFET Power MOSFET by International Rectifier - Datasheet Preview — Datasheet preview – IRG4BC10KDPBF

Datasheet Details

Part number	IRG4BC10KDPBF
Manufacturer	International Rectifier
File Size	291.64 KB
Description	HEXFET Power MOSFET
Datasheet	IRG4BC10KDPBF Datasheet

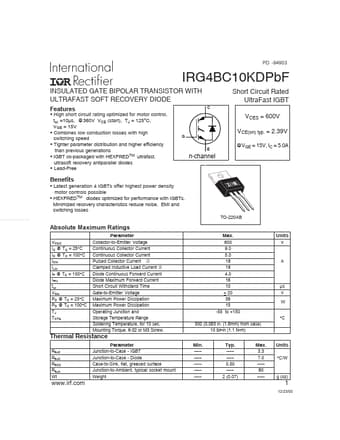

Additional preview pages of the IRG4BC10KDPBF datasheet.

Product details

Features

C Short Circuit Rated UltraFast IGBT VCES = 600V.
High short circuit rating optimized for motor control, tsc =10µs, @360V VCE (start), TJ = 125°C, VGE = 15V.
Combines low conduction losses with high switching speed.
Tighter parameter distribution and higher efficiency than previous generations.
IGBT co-packaged with.
