IRG7IC28U Datasheet, Igbt, International Rectifier

IRG7IC28U Features

• Igbt l Advanced Trench IGBT Technology Key Parameters VCE min 600 V l Optimized for Sustain and Energy Recovery circuits in PDP applications c VCE(ON) typ. @ IC = 40A IRP max @ TC= 25°

PDF File Details

Part number:

IRG7IC28U

Manufacturer:

International Rectifier

File Size:

385.43kb

Download:

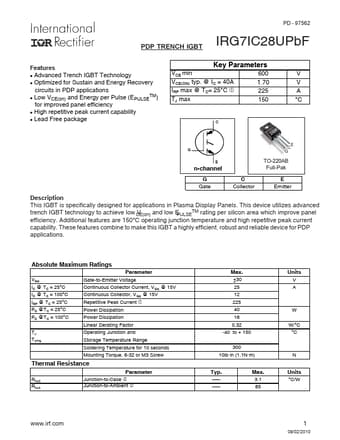

📄 Datasheet

Description:

Pdp trench igbt. This IGBT is specifically designed for applications in Plasma Display Panels. This device utilizes advanced trench IGBT technology to

IRG7IC28U Application

• Applications c VCE(ON) typ. @ IC = 40A IRP max @ TC= 25°C 1.70 225 V A l Low VCE(on) and Energy per Pulse (EPULSETM) TJ max 150 °C for impro
