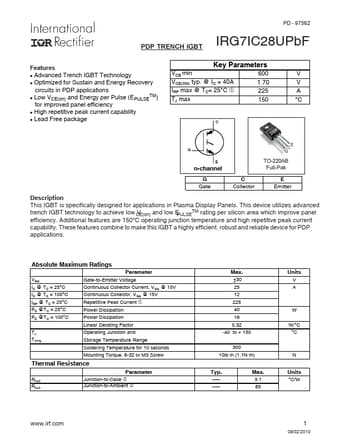

IRG7IC28UPBF Datasheet, Igbt, International Rectifier

IRG7IC28UPBF Features

• Igbt l Advanced Trench IGBT Technology l Optimized for Sustain and Energy Recovery circuits in PDP applications TM) l Low VCE(on) and Energy per Pulse (E PULSE for improved panel efficiency

PDF File Details

Part number:

IRG7IC28UPBF

Manufacturer:

International Rectifier

File Size:

385.43kb

Download:

📄 Datasheet

Description:

Pdp trench igbt. This IGBT is specifically designed for applications in Plasma Display Panels. This device utilizes advanced TM rating per silicon are

IRG7IC28UPBF Application

• Applications TM) l Low VCE(on) and Energy per Pulse (E PULSE for improved panel efficiency l High repetitive peak current capability l Lead Free pac
