IRG8P15N120KDPbF, INSULATED GATE BIPOLAR TRANSISTOR

IRG8P15N120KDPbF IRG8P15N120KD-EPbF VCES = 1200V IC = 15A, TC =100°C Insulated Gate Bipolar Transistor with Ultrafast Soft Recovery Diode C tS.

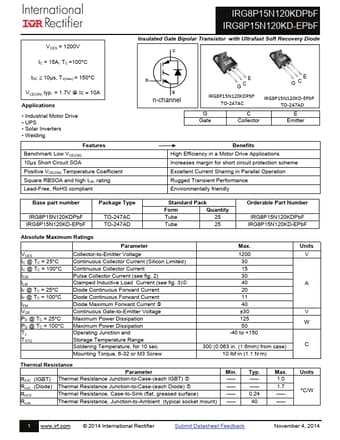

datasheet Preview Page 1 from Datasheet4u.com

IRG8P15N120KDPbF-InternationalRectifier.pdf

IRG8P15N120KDPbF Datasheet Preview — Preview of IRG8P15N120KDPbF PDF

Datasheet Details

Part number:

IRG8P15N120KDPbF

Manufacturer:

International Rectifier

File Size:

611.55 KB

Description:

INSULATED GATE BIPOLAR TRANSISTOR

Features

* Benchmark Low VCE(ON) 10μs Short Circuit SOA Positive VCE(ON) Temperature Coefficient Square RBSOA and high ILM- rating Lead-Free, RoHS compliant G E n-channel E GC E GC IRG8P15N120KDPbF IRG8P15N120KD‐EPbF TO‐247AC TO‐247AD G Gate C Collector E Emitter Benefits High Efficiency in a Mo

Applications

* Industrial Motor Drive
* UPS
* Solar Inverters
