IRGMVC50U INSULATED GATE BIPOLAR TRANSISTOR

IRGMVC50U Description

www.DataSheet4U.com PD -90825A IRGMVC50U INSULATED GATE BIPOLAR TRANSISTOR WITH ON-BOARD REVERSE DIODE .
n-ch an nel Insulated Gate Bipolar Transistors (IGBTs) from International Rectifier have higher usable current densities than comparable bipolar tra.

IRGMVC50U Features

* Electrically Isolated and Hermetically Sealed Simple Drive Requirements Latch-proof Ultra Fast operation > 10 kHz Switching-loss rating includes all "tail" losses Ceramic Eyelets C Ultra Fast Speed IGBT VCES = 600V G E VCE(on) max = 3.0V

IRGMVC50U Applications

* The performance of various IGBTs varies greatly with frequency. Note that IR now provides the designer with a speed benchmark (fIc/2, or the "half-current frequency "), as well as an indication of the current handling capability of the device. Absolute Maximum Ratings Parameter VCES IC @ TC = 25°C

📥 Download Datasheet

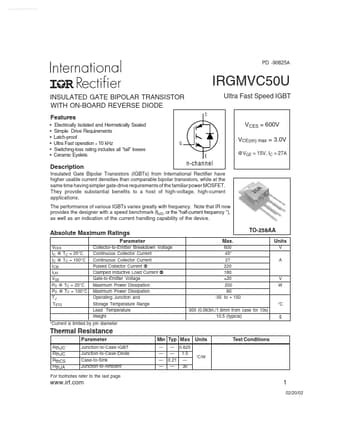

Preview of IRGMVC50U PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IRGMVC50U
Manufacturer
International Rectifier
File Size
576.31 KB
Datasheet
IRGMVC50U_InternationalRectifier.pdf
Description
INSULATED GATE BIPOLAR TRANSISTOR
