IRGS4056DPbF, INSULATED GATE BIPOLAR TRANSISTOR

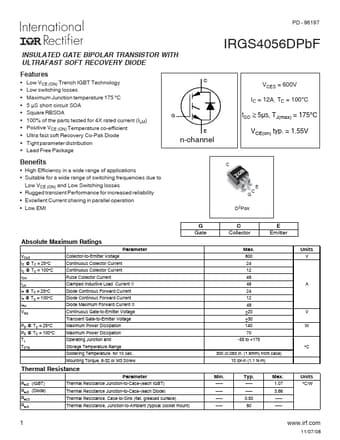

PD - 96197 INSULATED GATE BIPOLAR TRANSISTOR WITH ULTRAFAST SOFT RECOVERY DIODE .

datasheet Preview Page 1 from Datasheet4u.com

IRGS4056DPbF-InternationalRectifier.pdf

IRGS4056DPbF Datasheet Preview — Preview of IRGS4056DPbF PDF

Datasheet Details

Part number:

IRGS4056DPbF

Manufacturer:

International Rectifier

File Size:

400.62 KB

Description:

INSULATED GATE BIPOLAR TRANSISTOR

Features

* Low VCE (ON) Trench IGBT Technology
* Low switching losses
* Maximum Junction temperature 175 °C
* 5 µS short circuit SOA
* Square RBSOA
* 100% of the parts tested for 4X rated current (ILM)
* Positive VCE (ON) Temperature co-efficient

Applications

* Suitable for a wide range of switching frequencies due to Low VCE (ON) and Low Switching losses
* Rugged transient Performance for increased reliability
* Excellent Current sharing in parallel operation
* Low EMI IRGS4056DPbF VCES = 600V IC = 12A, TC = 100°C tSC ≥
