IRS2007D, IRS2007SPBF, 200-V half-bridge gate driver

IRS2007(S,M)PBF 200-V half-bridge gate driver IC with VCC & VBS UVLO .
The IRS2007 is a high voltage, high speed power MOSFET and IGBT driver with dependent high and low side referenced output channels.

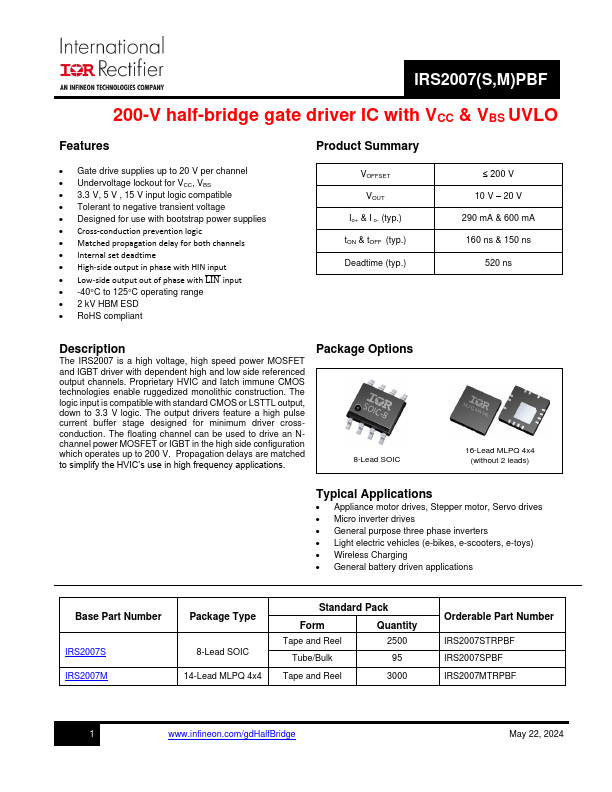

datasheet Preview Page 1 from Datasheet4u.com

IRS2007SPBF-InternationalRectifier.pdf

IRS2007D Datasheet Preview — This datasheet PDF includes multiple part numbers: IRS2007D, IRS2007SPBF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IRS2007D, IRS2007SPBF

Manufacturer:

International Rectifier

File Size:

1.77 MB

Description:

200-V half-bridge gate driver

Note:

This datasheet PDF includes multiple part numbers: IRS2007D, IRS2007SPBF.
Please refer to the document for exact specifications by model.

Features

* Product Summary
* Gate drive supplies up to 20 V per channel
* Undervoltage lockout for VCC, VBS
* 3.3 V, 5 V , 15 V input logic compatible
* Tolerant to negative transient voltage
* Designed for use with bootstrap power supplies
* Cross-conduction p

Applications

* Package Options 8-Lead SOIC 16-Lead MLPQ 4x4 (without 2 leads) Typical Applications
* Appliance motor drives, Stepper motor, Servo drives
* Micro inverter drives
* General purpose three phase inverters
* Light electric vehicles (e-bikes, e-scooters, e-toys)
