IRS2007MPBF, IRS2007SPBF - 200-V half-bridge gate driver

International Rectifier

📥 Download Datasheet

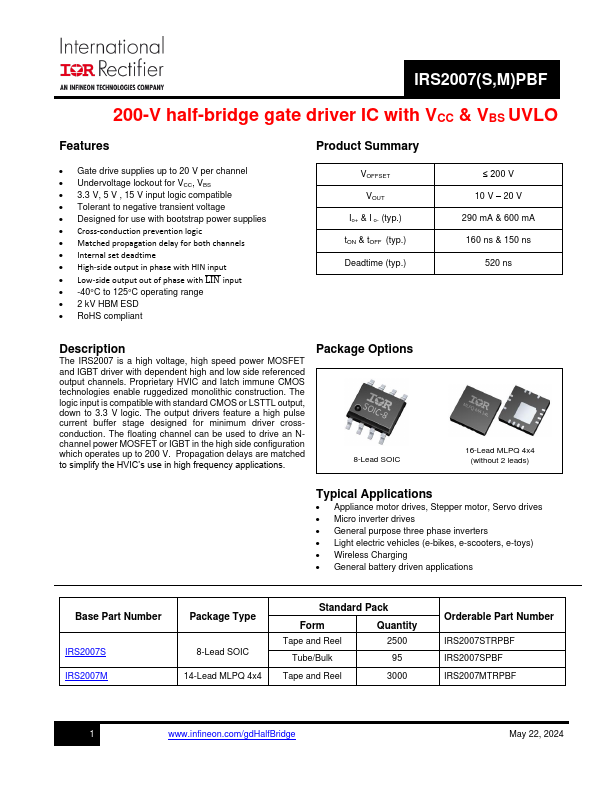

IRS2007MPBF Datasheet Preview — This datasheet PDF includes multiple part numbers: IRS2007MPBF, IRS2007SPBF. Please refer to the document for exact specifications by model.

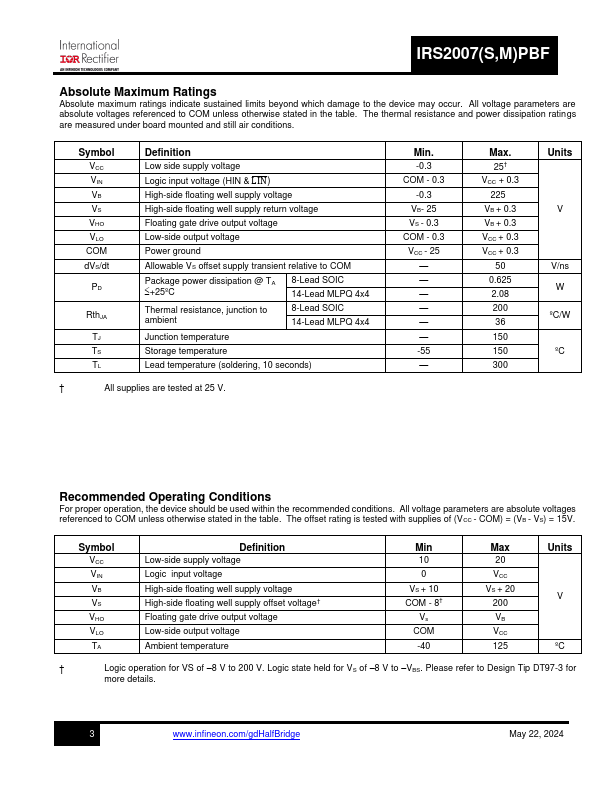

datasheet Preview Page 2

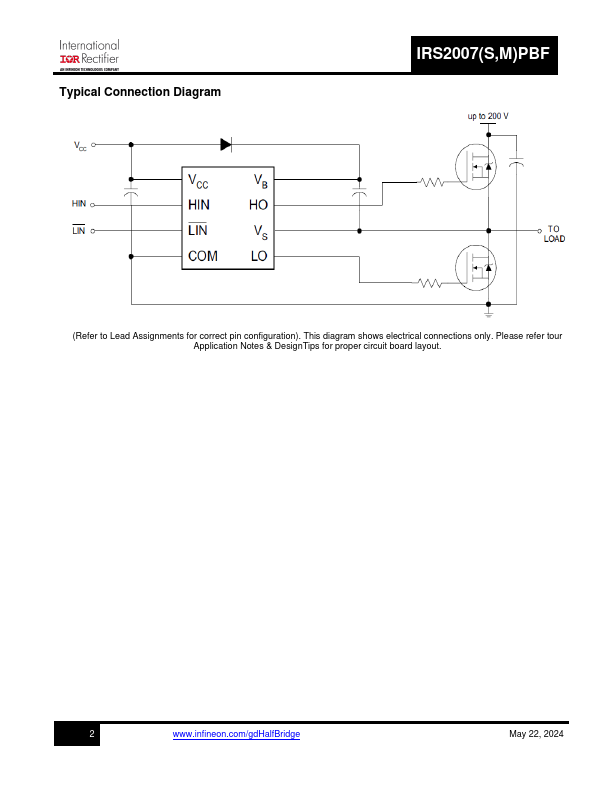

datasheet Preview Page 3

Datasheet Details

Part number	IRS2007MPBF, IRS2007SPBF
Manufacturer	International Rectifier
File Size	1.77 MB
Description	200-V half-bridge gate driver
Datasheet	IRS2007SPBF-InternationalRectifier.pdf
Note	This datasheet PDF includes multiple part numbers: IRS2007MPBF, IRS2007SPBF. Please refer to the document for exact specifications by model.

IRS2007MPBF Product details

Description

The IRS2007 is a high voltage, high speed power MOSFET and IGBT driver with dependent high and low side referenced output channels.

Features

Product Summary.
Gate drive supplies up to 20 V per channel.
Undervoltage lockout for VCC, VBS.
3.3 V, 5 V , 15 V input logic compatible.
Tolerant to negative transient voltage.
Designed for use with bootstrap power supplies.
Cross-conduction prevention logic.
Matched propagation delay for both channels.
Internal set deadtime.
High-side output in phase with HIN input.
Low-side output out of phase with LIN.
