IRS2007SPBF Datasheet, Driver, International Rectifier

IRS2007SPBF Features

  • Driver Product Summary
  • Gate drive supplies up to 20 V per channel
  • Undervoltage lockout for VCC, VBS
  • 3.3 V, 5 V , 15 V input logic compatible
  • Tolerant

PDF File Details

Part number:

IRS2007SPBF

Manufacturer:

International Rectifier

File Size:

2.29MB

Download:

📄 Datasheet

Description:

Half-bridge gate driver. The IRS2007 is a high voltage, high speed power MOSFET and IGBT driver with dependent high and low side referenced output channels. P

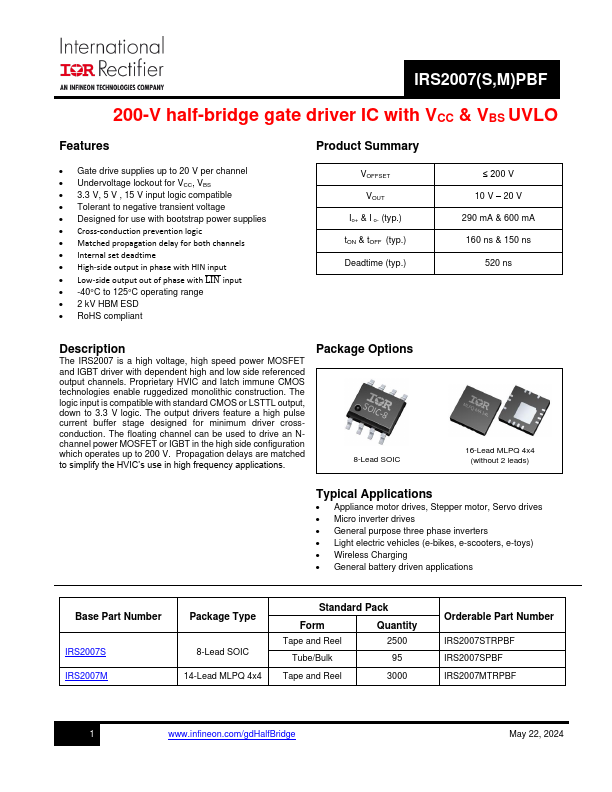

Datasheet Preview: IRS2007SPBF 📥 Download PDF (2.29MB)

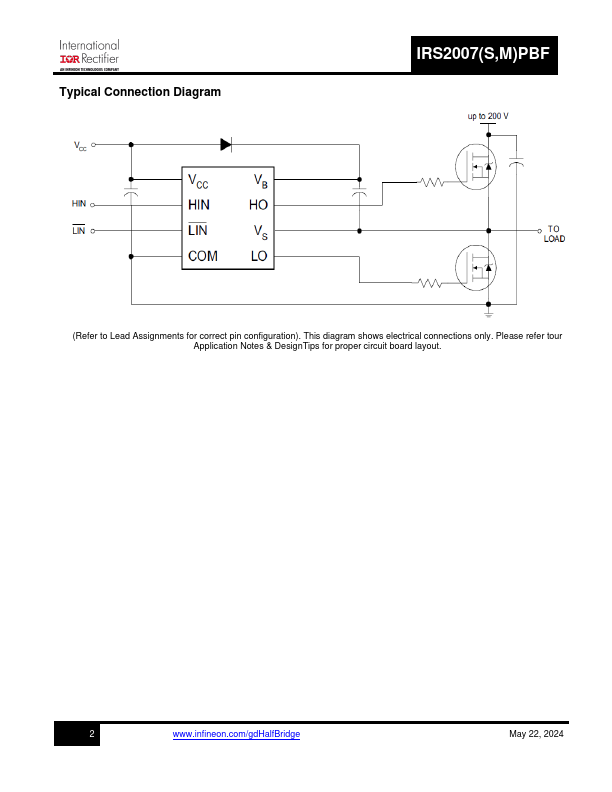

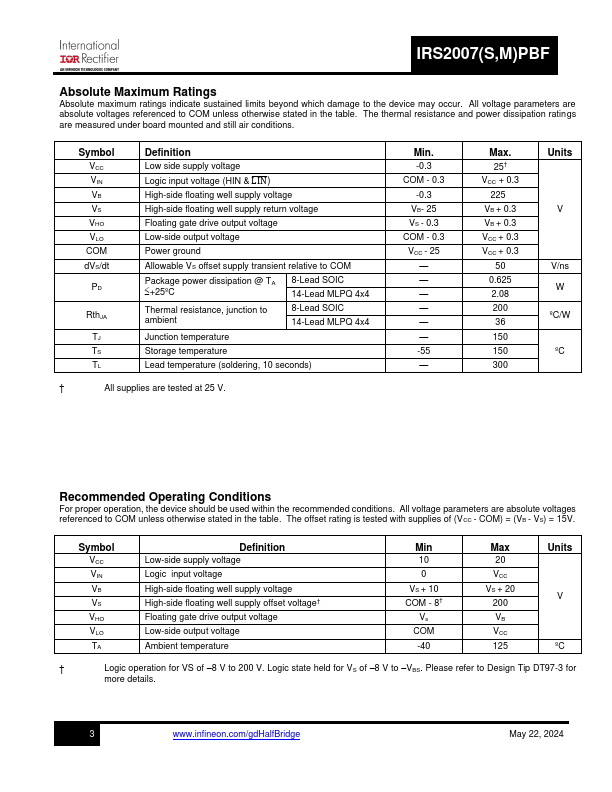

Page 2 of IRS2007SPBF Page 3 of IRS2007SPBF

IRS2007SPBF Application

  • Applications Package Options 8-Lead SOIC 16-Lead MLPQ 4x4 (without 2 leads) Typical Applications
  • Appliance motor drives, Stepper motor
