HCS86MS Datasheet - Intersil Corporation

Radiation Hardened Quad 2-Input Exclusive OR Gate

HCS86MS Features

* 3 Micron Radiation Hardened SOS CMOS

* Total Dose 200K RAD (Si)

* SEP Effective LET No Upsets: >100 MEV-cm2/mg

* Single Event Upset (SEU) Immunity < 2 x 10-9 Errors/Bit-Day (Typ)

* Dose Rate Survivability: >1 x 1012 RAD (Si)/s

* Dose Rate Upset >10 1

HCS86MS General Description

The Intersil HCS86MS is a Radiation Hardened Quad 2-Input Exclusive OR Gate. A high on any one input exclusively will change the output to a High state. The HCS86MS utilizes advanced CMOS/SOS technology to achieve high-speed operation. This device is a member of radiation hardened, high-speed, CMOS/.

HCS86MS Datasheet (176.63 KB)

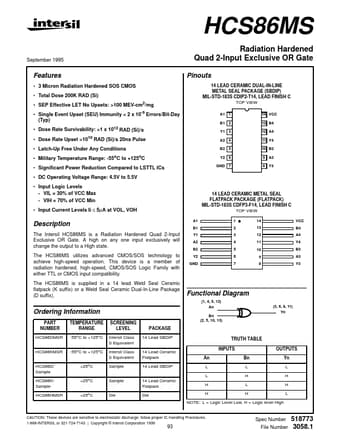

HCS86MS Datasheet Preview — Preview of HCS86MS PDF

Datasheet Details

Part number:

HCS86MS

Manufacturer:

Intersil Corporation

File Size:

176.63 KB

Description:

Radiation hardened quad 2-input exclusive or gate.
HCS86MS September 1995 Radiation Hardened Quad 2-Input Exclusive OR Gate Pinouts 14 LEAD CERAMIC DUAL-IN-LINE METAL SEAL PACKAGE (SBDIP) MIL-STD-183S.
