HIP7030A2

J1850 8-Bit 68HC05 Microcontroller

Intersil Corporation

HIP7030A2 Features

* Fully Supports VPW Speciﬁcations of SAE J1850 Standard for Class B Data Communications Network Interface

* On-Chip Memory

* 176 Bytes of RAM

* 2110 Bytes of User ROM

* 13 Bidirectional I/O Lines

* 16-Bit Timer with Capture and Compare Registers

HIP7030A2 General Description

The HIP7030A2 HCMOS Microcomputer is a member of the CDP68HC05 family of low-cost single-chip microcomputers. The integrated hardware functions provide the system designer with a complete set of building blocks for implementing a “Class B” multiplexed communications network interface, which fully co.

HIP7030A2 Datasheet (263.31 KB)

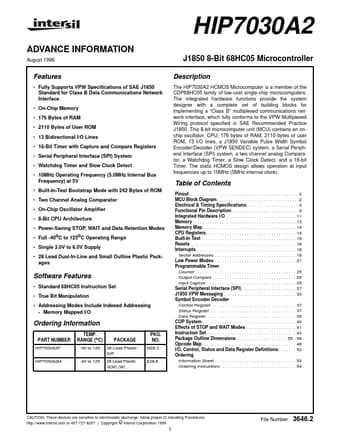

HIP7030A2 Datasheet Preview — Preview of HIP7030A2 PDF

Datasheet Details

Part number:

HIP7030A2

Manufacturer:

Intersil Corporation

File Size:

263.31 KB

Description:

J1850 8-bit 68hc05 microcontroller.
