HIP0060 - 50V Quad Low Side Power Driver

HIP0060 Description

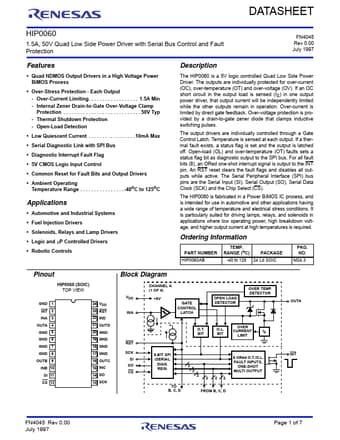

DATASHEET HIP0060 1.5A, 50V Quad Low Side Power Driver with Serial Bus Control and Fault Protection FN4045 Rev 0.00 July 1997 .
The HIP0060 is a 5V logic controlled Quad Low Side Power Driver.

HIP0060 Features

* Quad NDMOS Output Drivers in a High Voltage Power BiMOS Process
* Over-Stress Protection - Each Output - Over-Current Limiting
* . . . 1.5A Min - Internal Zener Drain-to-Gate Over-Voltage Clamp Protection
* . . . 50

HIP0060 Applications

* Automotive and Industrial Systems
* Fuel Injection Drivers
* Solenoids, Relays and Lamp Drivers
* Logic and P Controlled Drivers

📥 Download Datasheet

Preview of HIP0060 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HIP0060
Manufacturer
Renesas ↗
File Size
427.21 KB
Datasheet
HIP0060-Renesas.pdf
Description
50V Quad Low Side Power Driver
