HIP0061 Datasheet, Array, Renesas

HIP0061 Features

  • Array
  • Three 3.5A Power MOS N-Channel Transistors
  • Output Voltage to 60V
  • rDS(ON). . . . . . 0.225 Max Per Transistor at VGS = 10V
  • Pulsed Current . . . .

PDF File Details

Part number:

HIP0061

Manufacturer:

Renesas ↗

File Size:

528.22kb

Download:

📄 Datasheet

Description:

3-transistor common source esd protected power mosfet array. The HIP0061 is a power MOSFET array that consists of three matched N-Channel enhancement mode MOS transistors connected in a common s

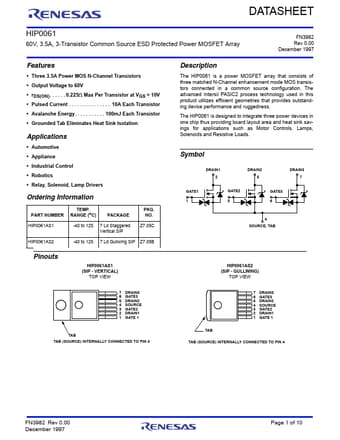

Datasheet Preview: HIP0061 📥 Download PDF (528.22kb)
Page 2 of HIP0061 Page 3 of HIP0061

HIP0061 Application

  • Applications
  • Automotive
  • Appliance
  • Industrial Control
  • Robotics
  • Relay, Solenoid, Lamp Drivers Order
