HIP0045 - 1A/50V Octal Low Side Power Driver

HIP0045 Description

DATASHEET HIP0045 1A/50V Octal Low Side Power Driver With Serial Bus Control and Fault Protection FN4047 Rev 12.00 Apr 1999 The HIP0045 is a logic .

HIP0045 Features

* Octal NDMOS Output Drivers in a High Voltage Power BiMOS Process
* Over-Stress Protection - Each Output: - Over-Current Protection
* . . . . 1A Min - Over-Voltage Clamp Protection
* . . 50V Typ - Thermal Shutdown Protection (2 Channels)

HIP0045 Applications

* and are ORed with the SPI Bus control. All channels are SPI Bus controlled and sense the output states for diagnostic feedback. The HIP0045 is fabricated in a Power BiMOS IC process, and is intended for use in automotive and other applications having a wide range of temperature and electrical stress

📥 Download Datasheet

Preview of HIP0045 PDF

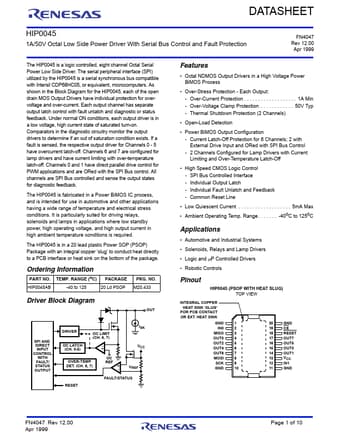

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HIP0045
Manufacturer
Renesas ↗
File Size
585.76 KB
Datasheet
HIP0045-Renesas.pdf
Description
1A/50V Octal Low Side Power Driver
