HIP0051 - 0.25A/50V Octal Low Side Power Driver

HIP0051 Description

DATASHEET HIP0051 0.25A/50V Octal Low Side Power Driver with Serial Bus Control FN4155 Rev.0.00 June 1996 .
The HIP0051 is a logic controlled, eight channel Octal Low Side Power Driver.

HIP0051 Features

* Eight Open Drain - NDMOS Low Side Drivers Each Capable of 250mA
* High Voltage Power BiMOS with Low Idle and Standby Current
* Over-Voltage Clamp Protection - Each Output
* . . . . 50V Typical
* Serial Data Input, Parallel Output Pow

HIP0051 Applications

* Automotive and Industrial Systems
* Solenoids, Relays and Lamp Drivers
* Logic and P Controlled Drivers
* Robotic Controls Pinout HIP0051 (SOIC) TOP VIEW GND 1 VCC 2 SI 3 DR0 4 DR1 5 DR2 6 DR3 7 NC 8 EN 9 GND 10 20 GND 19 LGND 18 SO 17 DR7 16 DR6 15 DR5 14 DR4 1

📥 Download Datasheet

Preview of HIP0051 PDF

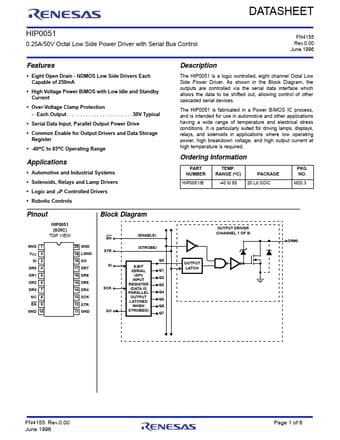

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HIP0051
Manufacturer
Renesas ↗
File Size
386.58 KB
Datasheet
HIP0051-Renesas.pdf
Description
0.25A/50V Octal Low Side Power Driver
