HIP0050 - 0.3A/50V Octal Low Side Power Driver

HIP0050 Description

DATASHEET HIP0050 0.3A/50V Octal Low Side Power Driver withSerial Bus Control and Over-Current Fault Flag FN4034 Rev 0.00 December 1996 .
The HIP0050 is a logic controlled, eight channel Octal Low Side Power Driver.

HIP0050 Features

* Octal NDMOS Output Drivers in a High Voltage Power BiMOS Process - Each Capable of Sinking 300mA - Low Idle and Standby Current
* Over-Stress Protection - Each Output: - Over-Current Latch Off
* . . . . 300mA Min - Over-Voltage Clamp
* 50V Typ

HIP0050 Applications

* Automotive and Industrial Systems
* Solenoids, Relays and Lamp Drivers
* Logic and P Controlled Drivers

📥 Download Datasheet

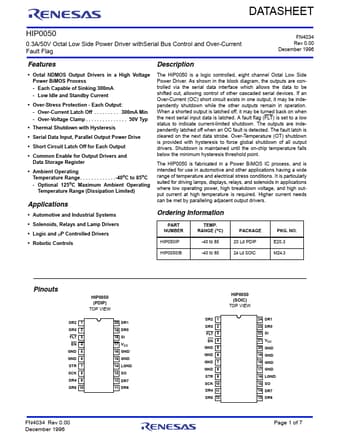

Preview of HIP0050 PDF
