JANSR2N7401 Datasheet - Intersil Corporation

JANSR2N7401 6A/ 250V/ 0.600 Ohm/ Rad Hard/ N-Channel Power MOSFET

JANSR2N7401 Formerly FSS234R4 August 1998 File Number 4571 6A, 250V, 0.600 Ohm, Rad Hard, N-Channel Power MOSFET The Discrete Products Operation of Intersil has developed a series of Radiation Hardened MOSFETs speciﬁcally designed for commercial and military space applications. Enhanced Power MOSFET immunity to Single Event Effects (SEE), Single Event Gate Rupture (SEGR) in particular, is combined with 100K RADS of total dose hardness to provide devices which are ideally suited to harsh space e.

JANSR2N7401 Features

* 6A, 250V, rDS(ON) = 0.600Ω

* Total Dose - Meets Pre-RAD Speciﬁcations to 100K RAD (Si)

* Single Event - Safe Operating Area Curve for Single Event Effects - SEE Immunity for LET of 36MeV/mg/cm2 with VDS up to 80% of Rated Breakdown and VGS of 10V Off-Bias

* Dose Rat

JANSR2N7401 Datasheet (55.20 KB)

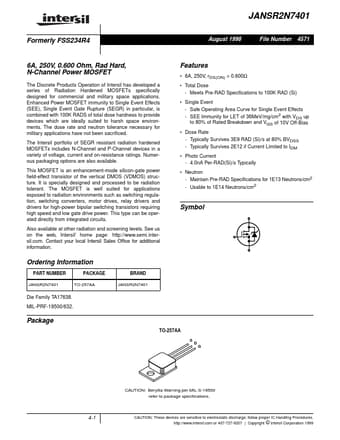

JANSR2N7401 Datasheet Preview — Preview of JANSR2N7401 PDF

Datasheet Details

Part number:

JANSR2N7401

Manufacturer:

Intersil Corporation

File Size:

55.20 KB

Description:

6a/ 250v/ 0.600 ohm/ rad hard/ n-channel power mosfet.
