RF1S40N10SM

40A/ 100V/ 0.040 Ohm/ N-Channel Power MOSFETs

RF1S40N10SM Features

* 40A, 100V

* rDS(ON) = 0.040Ω

* UIS Rating Curve

* SOA is Power Dissipation Limited

* 175oC Operating Temperature

* Related Literature - TB334 “Guidelines for Soldering Surface Mount Components to PC Boards” Symbol D Ordering Information PART NUMBER

RF1S40N10SM General Description

only. Intersil Corporation reserves the right to make changes in circuit design and/or specifications at any time without notice. Accordingly, the reader is cautioned to verify that data sheets are current before placing orders. Information furnished by Intersil is believed to be accurate and reliab.

RF1S40N10SM Datasheet (51.05 KB)

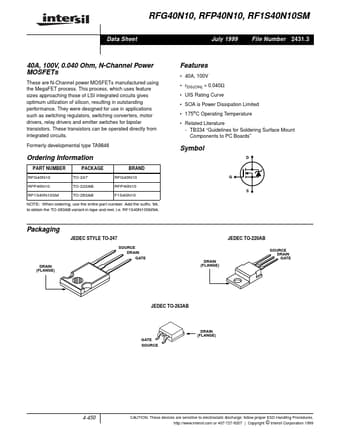

Preview of RF1S40N10SM PDF

Datasheet Details

Part number:

RF1S40N10SM

Manufacturer:

Intersil Corporation

File Size:

51.05 KB

Description:

40a/ 100v/ 0.040 ohm/ n-channel power mosfets.
RFG40N10, RFP40N10, RF1S40N10SM Data Sheet July 1999 File Number 2431.3 40A, 100V, 0.040 Ohm, N-Channel Power MOSFETs These are N-Channel power MOSFE.
