LMN6184DF - 60V N-Channel Enhancement Mode MOSFET

LMN6184DF Datasheet Preview — Preview of LMN6184DF PDF

Datasheet Details

Part number	LMN6184DF
Manufacturer	LFC semi
File Size	652.56 KB
Description	60V N-Channel Enhancement Mode MOSFET
Datasheet	LMN6184DF-LFCsemi.pdf

LMN6184DF Product details

Description

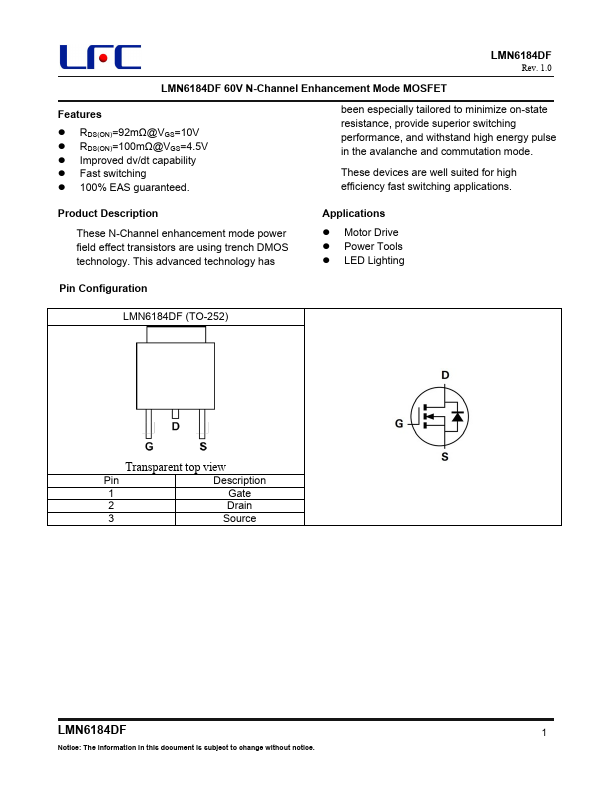

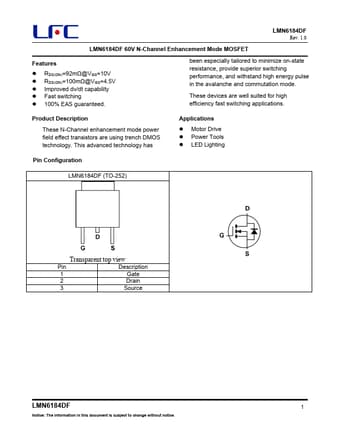

These N-Channel enhancement mode power field effect transistors are using trench DMOS technology. Motor Drive Power Tools LED Lighting Pin Configuration LMN6184DF (TO-252) Transparent top view Pin Description 1 Gate 2 Drain 3 Source LMN6184DF 1 Notice: The information in this document is subject to change without notice.Ordering Information Part Number LMN6184DF P/N LMN4184 LMN6184DF Rev.1.0 Ordering Information P

Features

RDS(ON)=92mΩ@VGS=10V.
RDS(ON)=100mΩ@VGS=4.5V.
Improved dv/dt capability.
Fast switching.
100% EAS guaranteed. been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. These devices are well suited for high efficiency fast switching.
