MX23C1024

1M-BIT [64K x 16] CMOS MASK ROM

MX23C1024 Features

* 64K x 16 organization (JEDEC pin out) Single +5V power supply Fast access time: 120/150/200ns Totally static operation Completely TTL compatible

* Operating current: 60mA

* Standby current: 100uA

* Package - 40 pin DIP (600 mi

MX23C1024 General Description

The MX23C1024 is a 5V only, 1M-bit, Read Only Memory. It is organized as 64Kx16 bit. MX23C1024 has a static standby mode, and has an access time of 120/150/200ns. It is designed to be compatible with all microprocessors and similar applications in which high performance, large bit storage and simple.

MX23C1024 Datasheet (121.95 KB)

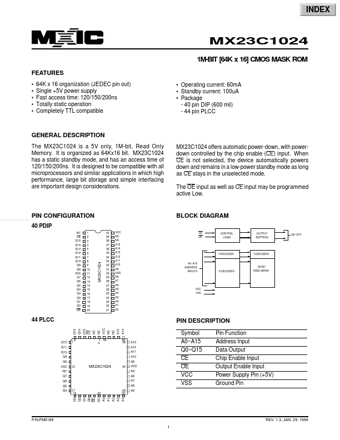

Preview of MX23C1024 PDF

Datasheet Details

Part number:

MX23C1024

Manufacturer:

Macronix International

File Size:

121.95 KB

Description:

1m-bit [64k x 16] cmos mask rom.
