MX2301A Datasheet, Mosfet, ChipSourceTek

MX2301A Features

  • Mosfet VDS =-20V,ID =-3A @VGS=-2.5V RDS(ON)(Typ.)=110mΩ @VGS=-4.5V RDS(ON)(Typ.)=85mΩ k High power and current handing capability Lead free product is acquired e Surface mount package T Appl

PDF File Details

Part number:

MX2301A

Manufacturer:

ChipSourceTek

File Size:

1.29MB

Download:

📄 Datasheet

Description:

P-channel power mosfet. The MX2301A uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as

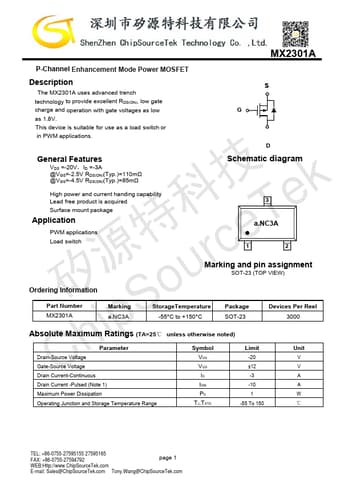

Datasheet Preview: MX2301A 📥 Download PDF (1.29MB)
Page 2 of MX2301A Page 3 of MX2301A

MX2301A Application

  • Applications s G D General Features VDS =-20V,ID =-3A @VGS=-2.5V RDS(ON)(Typ.)=110mΩ @VGS=-4.5V RDS(ON)(Typ.)=85mΩ k High power and current hand
