MX2302A - N-Channel Power MOSFET

MX2302A Description

N-Channel Enhancement Mode Power MOSFET .
The MX2302A uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2.

MX2302A Features

* Schematic
* VDS =20V，ID = 3.0A
* @VGS= 4.5V RDS(ON)(Typ. )=45mΩ
* @VGS= 2.5V RDS(ON)(Typ. )=55mΩ
* High power and current handing capability
* Lead free product is acquired k

📥 Download Datasheet

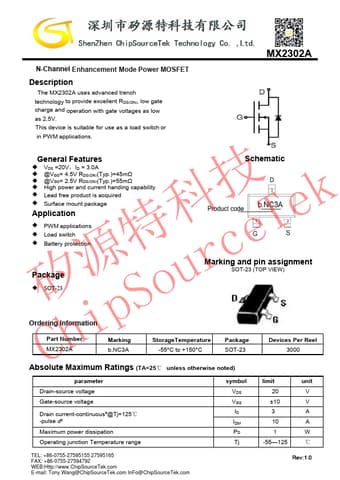

Preview of MX2302A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MX2302A
Manufacturer
ChipSourceTek
File Size
805.91 KB
Datasheet
MX2302A-ChipSourceTek.pdf
Description
N-Channel Power MOSFET
