MX2300 - N-Channel Enhancement Mode Power MOSFET

MX2300 Description

MX2300 N-Channel Enhancement Mode Power MOSFET .
The MX2300 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2.

MX2300 Features

* Schematic diagram
* VDS =20V，ID =4.5A
* RDS(ON)(Typ. )27mΩ @ Vgs=4.5V
* RDS(ON)(Typ. )33mΩ @ Vgs=2.5V
* High power and current handing capability k
* Lead free product is acquired

📥 Download Datasheet

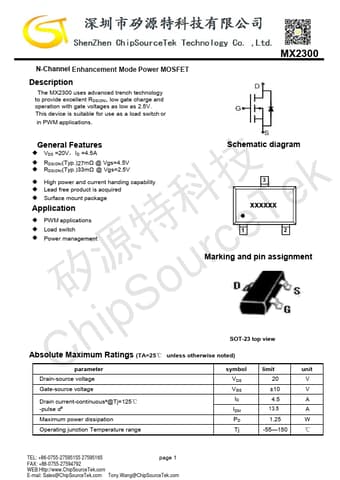

Preview of MX2300 PDF
