MX2300C Datasheet, Mosfet, ChipSourceTek

MX2300C Features

  • Mosfet
  • VDS =20V,ID =2.5A
  • RDS(ON)(Typ.) 52mΩ @ Vgs=4.5V
  • RDS(ON)(Typ.) 72mΩ @ Vgs=2.5V
  • High power and current handing capability k
  • Lead free pr

PDF File Details

Part number:

MX2300C

Manufacturer:

ChipSourceTek

File Size:

1.16MB

Download:

📄 Datasheet

Description:

N-channel power mosfet. The MX2300C uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as

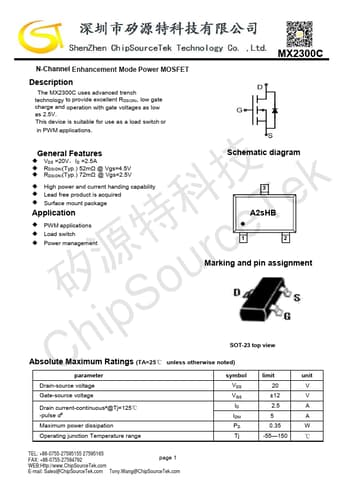

Datasheet Preview: MX2300C 📥 Download PDF (1.16MB)
Page 2 of MX2300C Page 3 of MX2300C

MX2300C Application

  • Applications MX2300C s G General Features
  • VDS =20V,ID =2.5A
  • RDS(ON)(Typ.) 52mΩ @ Vgs=4.5V
  • RDS(ON)(Typ.) 72mΩ @ Vgs=
