ME2301GC

P-Channel 20V (D-S) MOSFET

ME2301GC Features

* RDS(ON) ≦75mΩ@VGS=-4.5V

* RDS(ON) ≦95mΩ@VGS=-2.5V

* RDS(ON) ≦130mΩ@VGS=-1.8V

* Super high density cell design for extremely low RDS(ON)

* Exceptional on-resistance and maximum DC current capability APPLICATIONS

* Power Management in Note book

* Portable Equipment

ME2301GC General Description

The ME2301GC is the P-Channel logic enhancement mode power field effect transistors are produced using high cell density, DMOS trench technology. This high density process is especially tailored to minimize on-state resistance. These devices are particularly suited for low voltage application such a.

ME2301GC Datasheet (884.19 KB)

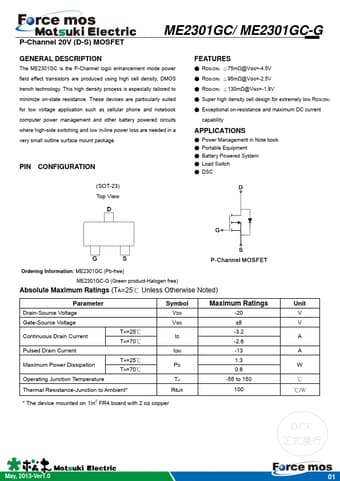

Preview of ME2301GC PDF

Datasheet Details

Part number:

ME2301GC

Manufacturer:

Matsuki

File Size:

884.19 KB

Description:

P-channel 20v (d-s) mosfet.
