SY100EP11U Datasheet, Buffer, Micrel Semiconductor

SY100EP11U Features

  • Buffer
  • 2.5V, 3.3V and 5V power supply options
  • Guaranteed AC parameters over temperature:
  • fMAX > 3.0GHz
  • < 20ps output-to-output skew
  • < 200ps tr

PDF File Details

Part number:

SY100EP11U

Manufacturer:

Micrel Semiconductor

File Size:

504.37kb

Download:

📄 Datasheet

Description:

1:2 differential fanout buffer. The SY10/100EP11U is a precision, high-speed 1:2 differential fanout buffer. Having within-device skews and output transition times s

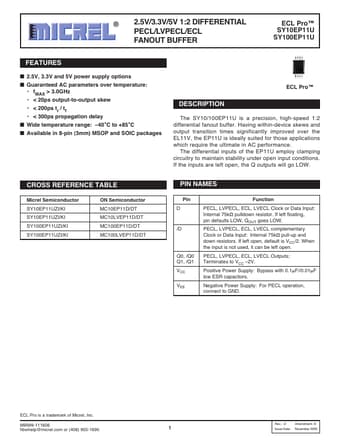

Datasheet Preview: SY100EP11U 📥 Download PDF (504.37kb)
Page 2 of SY100EP11U Page 3 of SY100EP11U

SY100EP11U Application

  • Applications which require the ultimate in AC performance. The differential inputs of the EP11U employ clamping circuitry to maintain stability unde
