SY100EP16V

3.3V/5V Precision ECL Differential Receiver/Driver

SY100EP16V Features

* Precision Edge®

* Precision 800mV ECL Receiver/Driver

* 100K ECL compatible I/O

* Guaranteed AC performance over temperature and voltage:

* DC-to > 2.5Gbps throughput

* 220ps typical propagation delay (D-to-Q)

SY100EP16V General Description

The SY100EP16V is a 3.3/5V, high-speed, fully differential ECL Receiver/Driver that can process clock signals as fast as 3GHz or data patterns up to 2.5Gbps. The differential input includes an internal 75kΩ pulldown resistor on both the true and complement inputs and a 37.5kΩ pull-up resistor in the.

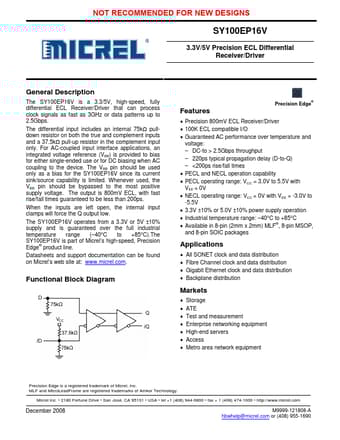

SY100EP16V Datasheet (533.14 KB)

Preview of SY100EP16V PDF

Datasheet Details

Part number:

SY100EP16V

Manufacturer:

Micrel Semiconductor

File Size:

533.14 KB

Description:

3.3v/5v precision ecl differential receiver/driver.
