SY100EP196V

3.3V/5V 2.5GHz PROGRAMMABLE DELAY

SY100EP196V Features

* Pin-for-pin, plug-in compatible to the ON Semiconductor MC100EP196

* Maximum frequency > 2.5GHz

* Programmable range: 2.2ns to 12.2ns

* 10ps increments

* 30ps fine tuning range

* PECL mode operating range: VCC = 3.0V to 5.5V with VEE = 0V

* NECL mode operating range: VC

SY100EP196V General Description

The SY100EP196V is a programmable delay line, varying the time a logic signal takes to traverse from IN to Q. This delay can vary from about 2.2ns to about 12.2ns. The input can be PECL, LVPECL, NECL, or LVNECL. The delay varies in discrete steps based on a control word prese.

SY100EP196V Datasheet (610.65 KB)

Preview of SY100EP196V PDF

Datasheet Details

Part number:

SY100EP196V

Manufacturer:

Micrel Semiconductor

File Size:

610.65 KB

Description:

3.3v/5v 2.5ghz programmable delay.

📁 Related Datasheet

SY100EP195V - 3.3V/5V 2.5GHz PROGRAMMABLE DELAY (Micrel Semiconductor)
Micrel, Inc. 3.3V/5V 2.5GHz PROGRAMMABLE DELAY ECL Pro® ESCYL100PErPo1®95V SY100EP195V FEATURES ■ Pin-for-pin, plug-in patible to the ON Semicon.

SY100EP195V - 3.3V/5V 1.6 GHz Programmable Delay (Microchip)
SY100EP195V 3.3V/5V 1.6 GHz Programmable Delay Features • Pin-for-Pin, Plug-In Compatible to the ON Semiconductor MC100EP195 • Maximum Frequency >1.6.

SY100EP111U - LVPECL/LVECL/HSTL CLOCK DRIVER (Micrel Semiconductor)
.

SY100EP11U - 1:2 Differential Fanout Buffer (Micrel Semiconductor)
Micrel, Inc. 2.5V/3.3V/5V 1:2 DIFFERENTIAL PECL/LVPECL/ECL FANOUT BUFFER ECL Pro™ ECSLSYY1P10r00oEEPP™1111UU SY10EP11U SY100EP11U FEATURES ■ 2.5V, .

SY100EP14U - 2.5V/3.3V/5V 1:5 LVPECL/PECL/ ECL/HSTL 2GHz CLOCK DRIVER (Micrel Semiconductor)
Micrel, Inc. 2.5V/3.3V/5V 1:5 LVPECL/PECL/ ECL/HSTL 2GHz CLOCK DRIVER WITH 2:1 DIFFERENTIAL INPUT MUX Precision Edge® PrecisioSnYE10d0gEeP1®4U SY100.

SY100EP15V - 3.3V/5V 2.5GHz PECL/ECL 1:4 FANOUT BUFFER (Micrel Semiconductor)
Micrel, Inc. 3.3V/5V 2.5GHz PECL/ECL 1:4 FANOUT BUFFER WITH 2:1 INPUT MUX ECL Pro™ ECSLY1P0r0oEP™15V SY100EP15V FEATURES ■ High-speed 1:4 PECL/ECL .

SY100EP16U - 2.5/3.3V Precision ECL Differential Receiver/Driver (Micrel Semiconductor)
SY10/100EP16U 2.5/3.3V Precision ECL Differential Receiver/Driver General Description The SY10/100EP16U is a 2.5/3.3V, high-speed, fully differential.

SY100EP16V - 3.3V/5V Precision ECL Differential Receiver/Driver (Micrel Semiconductor)
NOT RECOMMENDED FOR NEW DESIGNS SY100EP16V 3.3V/5V Precision ECL Differential Receiver/Driver General Description The SY100EP16V is a 3.3/5V, high-sp.

TAGS

SY100EP196V 3.3V 2.5GHz PROGRAMMABLE DELAY Micrel Semiconductor

Image Gallery

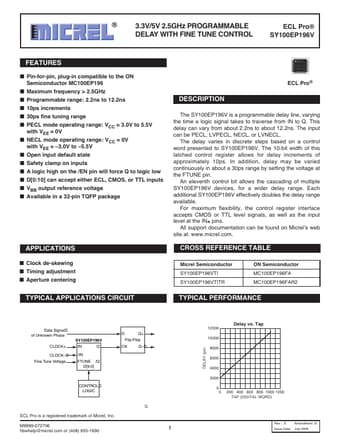

SY100EP196V Datasheet Preview Page 2 SY100EP196V Datasheet Preview Page 3
