SY89430V - PROGRAMMABLE FREQUENCY SYNTHESIZER

Micrel Semiconductor

The SY89430V by Micrel Semiconductor is a PROGRAMMABLE FREQUENCY SYNTHESIZER. Below is the official datasheet preview.

📥 Download Datasheet

SY89430V PROGRAMMABLE FREQUENCY SYNTHESIZER by Micrel Semiconductor - Datasheet Preview — Official preview page of the SY89430V PROGRAMMABLE FREQUENCY SYNTHESIZER datasheet (Micrel Semiconductor).

Datasheet Details

Part number	SY89430V
Manufacturer	Micrel Semiconductor
File Size	534.87 KB
Description	PROGRAMMABLE FREQUENCY SYNTHESIZER
Datasheet	SY89430V_MicrelSemiconductor.pdf

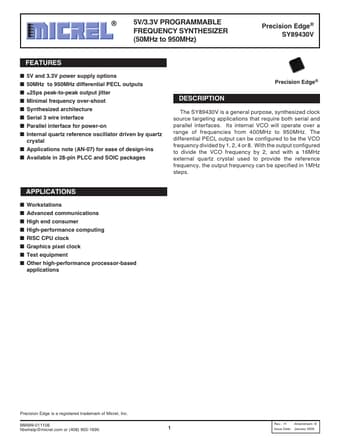

Additional preview pages of the SY89430V datasheet.

SY89430V Product details

Description

The SY89430V is a general purpose, synthesized clock source targeting applications that require both serial and parallel interfaces.

Features

5V and 3.3V power supply options.
50MHz to 950MHz differential PECL outputs.
±25ps peak-to-peak output jitter.
Minimal frequency over-shoot.
Synthesized architecture.
Serial 3 wire interface.
Parallel interface for power-on.
Internal quartz reference oscillator driven by quartz crystal.
