SY100ELT23 Datasheet, Translator, Microchip

SY100ELT23 Features

  • Translator
  • 3.0 ns Typical Propagation Delay
  • <300 ps Typical Within-Device Skew
  • Differential PECL Inputs
  • 24 mA TTL Outputs
  • Flow-Through Pinouts

PDF File Details

Part number:

SY100ELT23

Manufacturer:

Microchip ↗

File Size:

691.72kb

Download:

📄 Datasheet

Description:

Dual differential pecl-to-ttl translator. The SY100ELT23 is a dual differential PECL-to-TTL translator. Because PECL (positive ECL) levels are used, only +5V and ground are re

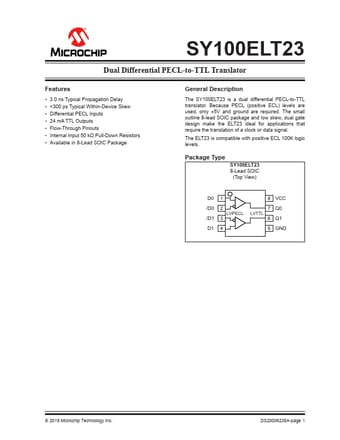

Datasheet Preview: SY100ELT23 📥 Download PDF (691.72kb)
Page 2 of SY100ELT23 Page 3 of SY100ELT23

SY100ELT23 Application

  • Applications that require the translation of a clock or data signal. The ELT23 is compatible with positive ECL 100K logic levels. Package Type SY1
