SY100EP195V Datasheet - Microchip

3.3V/5V 1.6 GHz Programmable Delay

SY100EP195V Features

* Pin-for-Pin, Plug-In Compatible to the ON Semiconductor MC100EP195

* Maximum Frequency >1.6 GHz

* Programmable Range: 2.1 ns to 10.8 ns

* 10 ps Increments

* PECL Mode Operating Range: VCC = 3.0V to 5.5V with VEE = 0V

* NECL Mode Operating Range: VCC

SY100EP195V General Description

The SY100EP195V is a programmable delay line, varying the time a logic signal takes to traverse from IN to Q. This delay can vary from about 2.1 ns to about 10.8 ns. The input can be PECL, LVPECL, NECL, or LVNECL. The delay varies in discrete steps based on a control word presented to the SY100EP195.

SY100EP195V Datasheet (1.51 MB)

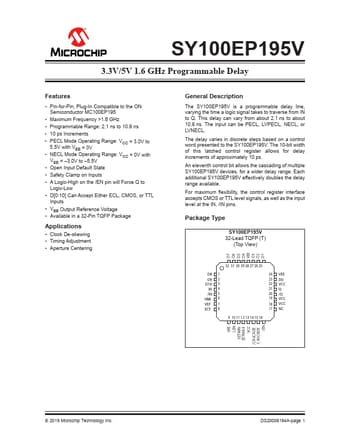

Preview of SY100EP195V PDF
