2N3700 LOW POWER NPN SILICON TRANSISTOR

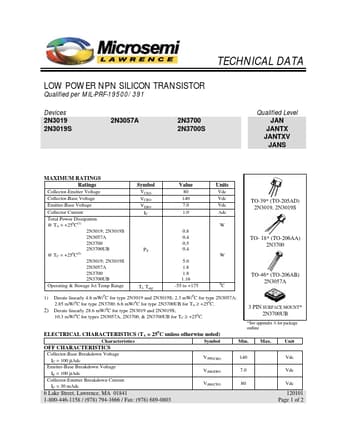

TECHNICAL DATA LOW POWER NPN SILICON TRANSISTOR Qualified per MIL-PRF-19500/391 Devices 2N3019 2N3019S 2N3057A 2N3700 2N3700S Qualified Level JAN JANTX JANTXV JANS MAXIMUM RATINGS Ratings Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current Total Power Dissipation @ TA = +250C(1) 2N3019; 2N3019S 2N3057A 2N3700 2N3700UB @ TC = +250C(2) 2N3019; 2N3019S 2N3057A 2N3700 2N3700UB Operating & Storage Jct Temp Range Symbol VCEO VCBO VEBO IC PT TJ, Tstg Value 80.
